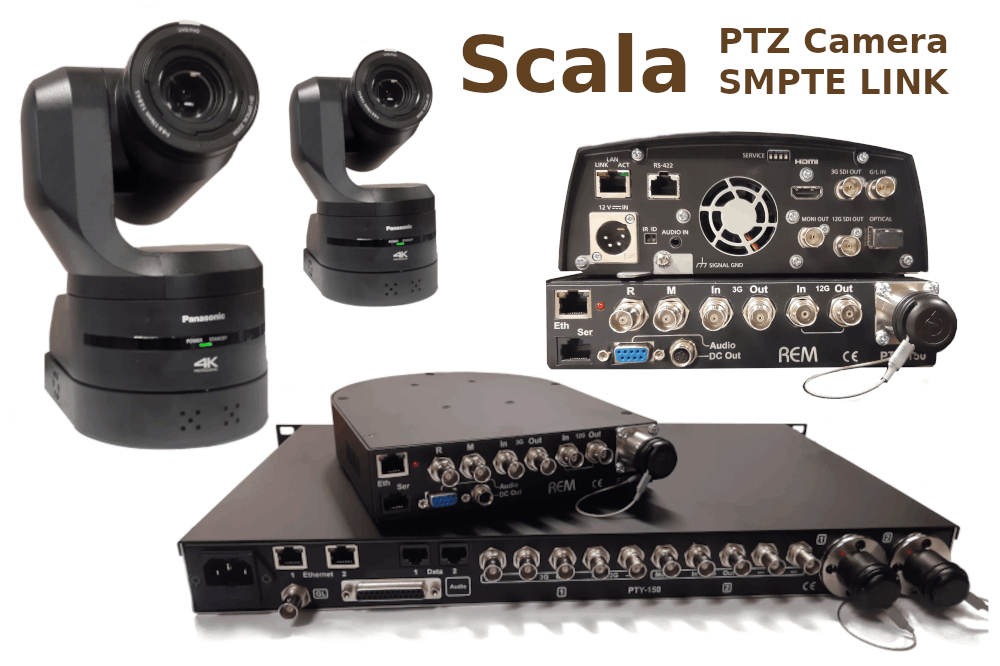

PTZ Fiber Pair or Hybrid Interface
SCALA is the perfect solution for your TOP gamma PTZ
- SDI 12G
- 3G SDI Monitoring
- SDI 3G BiDirectional
- Ethernet 1GB
- Reference
- Two BiDi Audio (Mic In with Phantom, Line In, 2 Return, All Balanced)
- Serial RS422
- Tally / GPI
- Aux 12V Output
- Various Mechanical Adapter for Tripod and other fixes
- Single or Dual Channel CCU

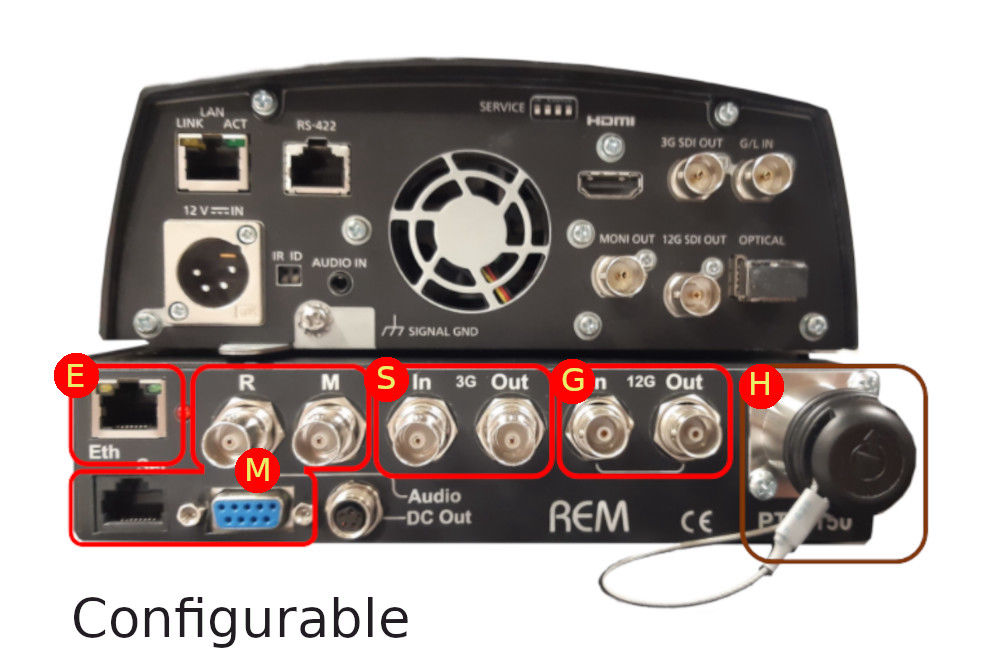

CONFIGURABLE !!!
Scala may be ordered in various fashion to match your needs
- E Ethernet 1GB
- M Multifunction (SDI, Reference, Audios, RS422, Tally, GPI)
- S SDI 3G Bidirectional
- G SDI 12G Monodirectional or BiDirectional
- C Fiber Input with SDI 12G Output (only for Panasonic AW-UE150)
- P Fiber Loop (Free Fiber)
- N Neutrik DUO Hybrid connector
- L SMPTE (Lemo) Hybrid connector

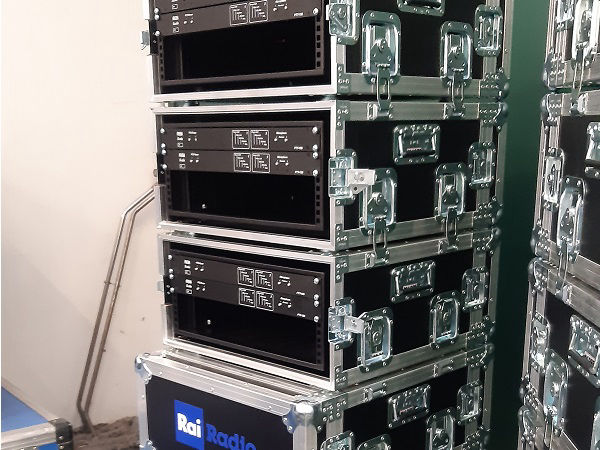

Dual Channel or Single Channel in 1RU control unit
Various Adapters (shape designed for AW-UE150 / CR-N500)
Non modular version but with all the most common requirements:

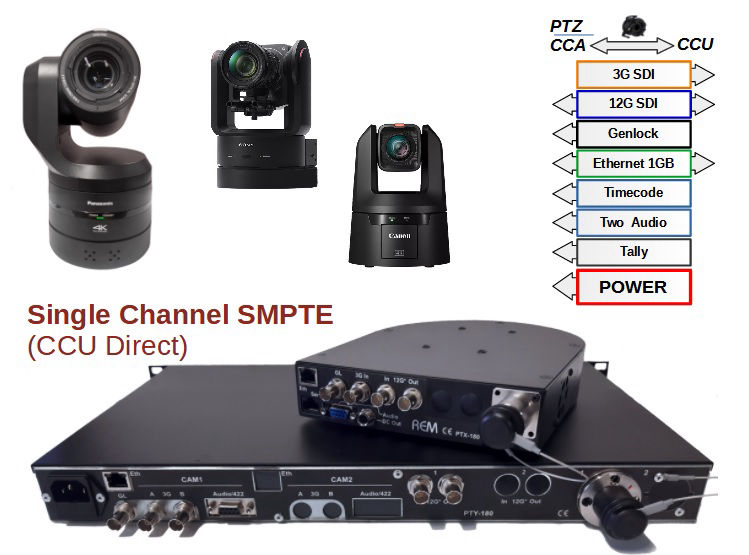

Scala - LT
SDI 3G - Genlock - Timecode - Tally - Aux Audio and Ethernet (LAN).
Options:
- Additional SDI 12G Mono or Bidirectional
- Additional SDI 3G Bidirectional
SMPTE Hybrid Lemo, Neutrik or Fiber Pair
Scala-FR (Sony FR-7 Dedicated)
SDI 3G - Genlock - Timecode - Tally - Two Balanced Audio and Ethernet (LAN) plus
SDI 12G or Dark Fiber or Return 3G optional
SMPTE Hybrid Lemo, Neutrik or Fiber Pair
Scala-ST (Studio / Theater)
3G SDI and Reference (BB) plus Ethernet 1GB - Timecode - Tally & LOW POWER
for shorter distance and inside applications with lighter Hybrid Cable (Senko,....)

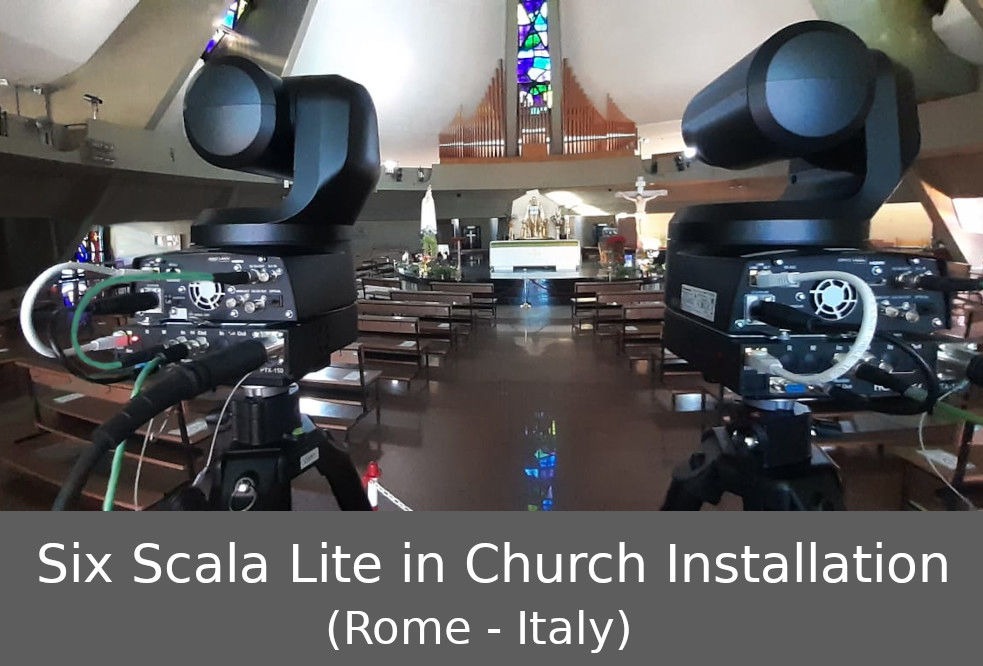

All Scala Lite accept installation with Split Chain
CCU -> Fiber-Pair -> Hybrid Power Manager (Wall-Box, ORH, ..) -> CCA/PTZ
